How to build a shed ramp

Building a shed ramp is one of those DIY projects that is super easy to put off because it’s not immediately important. But once it’s done, you might wonder why you didn’t do it sooner, because: Little. Daily. Joy. Matters. Life improvement happens, a few steps—and a few boards—at a time.

diy projects shed ramp

Sure, a leaking toilet, overflowing gutters, dangling cabinet door that you use every day is impossible to ignore compared with lurching in and out of the shed with the bikes, mower, or ladder a bunch of times a week.

Why build a shed ramp?

However, a shed ramp like we built here is similar—if you’ve been on a construction site—to the day the stairs go in. There is a huge and humanizing difference between clamoring up a ladder and gliding up stairs like human being with a fully developed cerebral cortex.

diy projects
Look up ‘shab’ in the dictionary. This is the picture.

It’s the same with a shed ramp, not to overdo the analogy, but it’s true. A weekly wrestling match with the mower turns into a glide up an inclined plane of civility and there’s just something righteous about it. And handsome. Add some flowers and mulch on either side and cut in some garden beds and you’ve gone from cringe-fest to curb appeal.

diy projects; how to build a shed ramp
News to me: A pitch fork makes breaking up sod, like, about a million times easier.

Why I use a pitch fork and pressure treated.

This is a little aside from the carpentry, but if you have to dig or remove sod this new invention called a pitch fork is awesome for it. Much, much easier than using a shovel. That’s next. Who’s psyched?

Before we start though, a word or two about the wood. We used pressure treated Southern Pine that is rated for ground contact. How do you know the lumber you buy is rated? Check the label at the end of the board. It’ll say if it is or isn’t. OK, moving on…

diy projects
This is one of those ‘bite the bullet’ moments lots of DIY projects have.

It does not feel like it’s easier to dig out a space a little wider and deeper than the ramp, but, it is. I know what you’re thinking: Dig channels for the joists.

Maybe it’ll work. But there is near atomic-clock certainty something will be in your way. Or you’ll trip. Or something hyper-annoying will happen. Forget it. Bite the bullet and be glad you did.

An overarching theme for DIY projects is that a clean, spacious work area makes life easier—even if it doesn’t seem like it in the beginning. So, short story long, I dug this out. In the end, it took about an hour and saved all kinds of time on the back end.

How to build a shed ramp

First, the board attached to the shed is called a ‘ledger’. Couple things happening here:

1. It needs to be level OR parallel to the entry. If you have to pick one, pick parallel. Ideally it’s both.

2. It needs to be positioned such that there is room for the decking to fit under the doors so they can swing. We used 2×6 decking boards so I left 2-inches between the ledger and the bottom of the doors. I fastened it with my favorite decking screws.

Finding the joist angle.

In the photo above, I’m laying out the angle of the joist. Near the driveway, I propped up a scrap board on blocks. The block on top of the joist simulates the decking. The idea is that the top block lays out flush-ish with the driveway so the transition is reasonably even.

Third, I screwed a block to the ledger. Then, I hold the joist flush with the ledger and trace the angle.

Once I cut this piece, I use it as a pattern for the rest of the joists so they’re all the same.

diy projects
Jargon alert: Ledger, blocking, left band joist, front band joist, transition block.

Securing the band joist.

Another multi-step photo and a jargon alert. All these parts have names.

We mentioned the ledger above. The joist in place is the left band joist. To secure it I fastened it to blocking screwed into the ledger. That blocking is 14 1/2 inches long. More on that below.

Because the driveway is in the way, I use a transition block to fasten the front band joist to the left band joist. In this photo I’m starting the screws so they’re ready to drive once I position the piece. You can see how it fits together below.

Using gravel to help with level.

Getting the front band joist level—which makes it parallel with the ledger—is nice. Note the gravel piled up on front me.  I’m placing that under the frame so water can trickle through it away from the wood once the piece is integrated with the landscape. Adding gravel underneath the frame and tapping down with a hammer is a good way to ‘set’ something like this on a nice foundation.

diy projects shed ramp
Measure to each corner. When the measurement is the same the frame is ‘square’.

Measure for square.

Measuring from corner to corner is called ‘pulling diagonals’. For reasons that have to do with geometry I don’t understand, when each measurement reads the same, the frame is square.

Once I know the frame is square and level, I pack more gravel around it to further stabilize it. Before getting it square and level I want it to have some give. Once I achieve those things, I want it to stay still. Gravel is great for that.

diy projects
The blocking makes fastening the joists much easier.

Why is the block 14 1/2-inches? Because I spaced the joists 16-inches on center. I marked the ledger and the band joists the same way so the joists run straight and parallel with each other.

diy projects
Blocks aren’t a rule. They’re just handy by the ledger.

Securing the joists.

I could drive a screw through the front band joist into the regular joist which was faster than cutting and installing more blocks. Because I had easy access I used a screw driven in at an angle—called ‘toenailing’—in the back. Three screws per joist. Two toe nails and one through the front band.

diy projects
World’s lamest cut station.

Bevel the first piece of decking.

Because the ramp is angled, if you don’t cut the corresponding bevel on the first piece of decking, there will be a gap between it and the shed. It’s not the end of the world if there’s a gap (OK, it might be for me) but I am a carpentry dweeb so I do stuff like this. The ramp angle is 10-degrees. I ripped 10-degrees of the first piece of decking and installed it.

It is flush with the shed floor and my OCD.

diy projects
I love it when deck boards start going down. Progress!

Time for decking

I used 3-inch deck screws and butted the deck boards tight to one another. Pressure treated yellow pine (unless it’s KDAT—kiln dried after treatment…not something you’d probably use on a project like this) doesn’t need to be gapped. As it dries out, gaps will form and water can pass through.

diy projects shed ramp myfixituplife
The old hammer-and-chisel trick for truing up boards.

True up deck boards using a chisel. With the chisel’s bevel facing the deck board, drive it into the joist with your hammer at an angle. Then pull the chisel toward you. This will draw the board tight. Fasten it in place. There’s a video showing that tried and true deck building tip here.

diy projects
Last pieces. Lovin’ life!

How to make filler pieces

Chances are roughly a trillion to one the joists won’t be covered evenly by deck boards. No problem. Simply cut a filler piece. With two deck boards remaining, figure out what the filler piece’s dimension is. Here it was 2-deck boards plus 1 1/4-inches.

So I ripped the filler with the circular saw (a table saw is better if you have one). I installed it then installed the last two full deck boards. The general idea is that you don’t want the skinny board at the end.

diy projects shed ramp myfixituplife

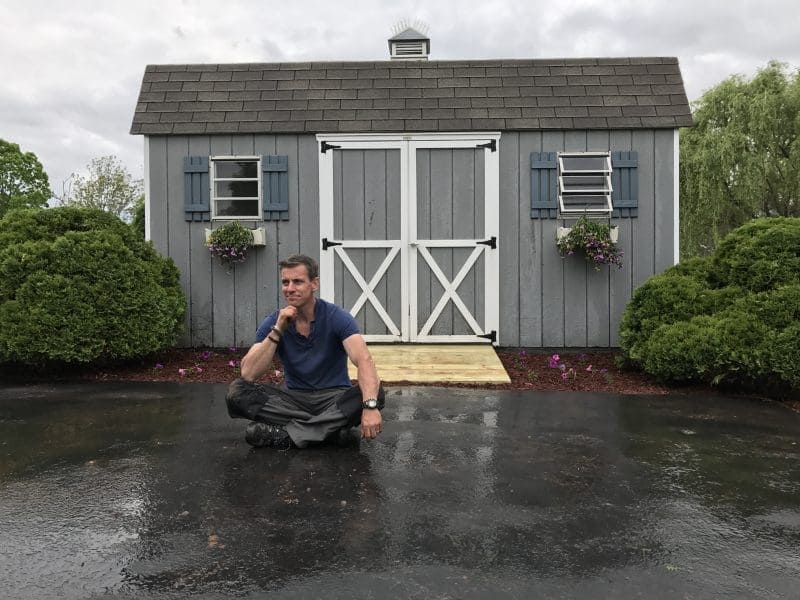

Boom. Boards, mulch, flowers and weekend DIY makes every day a little better. What’s next?

And the end is where we are. The shed ramp is finished. I hope this ‘how to build a shed ramp’ helps with your DIY projects.

Wood It’s Real sponsored this shed makeover. The sponsorship is theirs. The how-to, DIY and general hilarity is MyFixitUpLife.

Check out the video of this shed ramp project!
